Hand

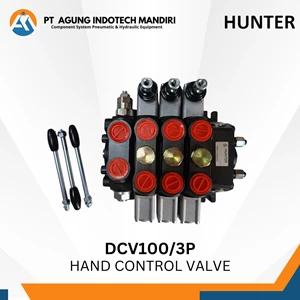

Control Valve DCV 100/3P
Brand: Hunter
Type: DCV100/3P
Jumlah Handle: 3
Flow Capacity: 100 LPM
Max. Pressure: 315 bar
All Port Size: 3/4"
Spring Handle
Main
Functions of DCV100
•
Directing Hydraulic Flow
This
valve controls where the hydraulic fluid is directed—such as to cylinders,
motors, or other actuators, as needed by the operator or system.
•
Manual or Automatic Control
It can
be operated directly by the operator using a lever/joystick, or automatically
via pneumatic or electric signals.
•
High-Pressure System Support
Designed
to operate in high-pressure hydraulic systems, ensuring reliable performance in
heavy-duty machinery.
•
Modular & Flexible Design
The
sectional structure allows for the addition or modification of spool numbers to
suit functional requirements.
•
Damage Prevention Features
Equipped
with features like overload protection and anti-cavitation to ensure safety and
prolong component lifespan.
•
Additional Hydraulic Supply
With a
“carry-over” port, this valve can also supply hydraulic oil to other components
in the system, improving overall design efficiency.
